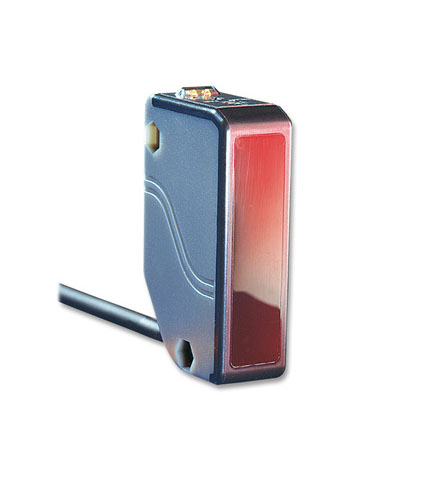

Amazing performance is offered by the EQ-30 sensor with a compact size of 68x20x40mm.Using the triangulation measurement principle, where received light intensity and angle are analysed, the target object’s colour and material will not affect its performance. An adjustable sensing range which will not be affected by background objects. The robust housing offers IP67 protection allowing the sensor to be used in the most demanding industrial environments.
Amazing performance is offered by the EQ-30 sensor with a compact size of 68x20x40mm.Using the triangulation measurement principle, where received light intensity and angle are analysed, the target object’s colour and material will not affect its performance. An adjustable sensing range which will not be affected by background objects. The robust housing offers IP67 protection allowing the sensor to be used in the most demanding industrial environments.
Characteristics:
Accessories:
| NPN output | EQ-34 (-J) | EQ-34W |
|---|---|---|
| PNP output | EQ-34-PN (-J) | |
| Double output | ||
| Sensor type | Diffuse | |
| Rating sensing distance | 200cm | |
| Sensing range | 10 – 200cm | Near: 20 – 200cm Far: 10 – 200cm |
| Standard detectable object |
White drawing paper, 20 x 20cm |
|
| Detectable target | Transparent and opaque material | |
| Hysteresis | < 10% of measurement range | |
| Response time | Max. 2ms | |
| Output transistor | Max. 100mA | |
| Emitting diode | Infrared LED | |
| Rated current consumption without load | NPN type: 50mA , PNP type: 55mA |
NPN type: 90mA |
| Housing material | Plastic | |
| Protection | IP67 | |
| Physical size (HxWxL) | 68 x 20 x 40mm | |
| Connection method | 2m cable or M12 connector (-J) | |
| Operating voltage | 10 – 30V DC (± 10%) | |
| Usable ambient temp. | -20°C to +55°C | |
| Weight (approx.) | 150g | |
