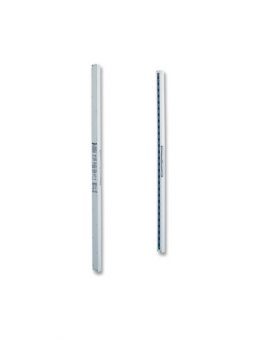

NA2-N Photoelectric PSensor
General purpose and slim body area sensor
The NA2-N series offers incredibly high performance in a general purpose area sensor. The slim body, just 13mm thick and 30mm wide, can be installed almost anywhere, greatly increasing planning efficiency. With a wide range of thin resin case type area sensors, from a sensing height of 540mm (28 beam channels) down to 140mm (8 beam channels), you can choose the size that best suits your purpose.
[vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]

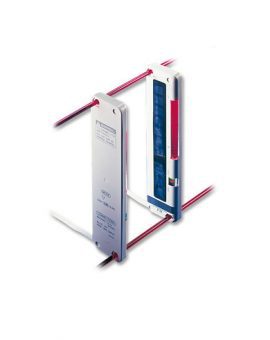

NA1-11 Photoelectric Sensor
Cross-beam area sensors
The NA1-11 sensor detects objects in a field of up to 10 x 100cm. This makes it particularly well suited to applications for which the position of the objects to be detected varies. This sensor is based on innovative cross-beam technology in which the infrared beam of each individual emitter element is sent to all receiver elements. This allows even small and narrow objects, such as letters, to be securely detected. At just 10mm wide, these light barriers help to save installation space.
[vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]

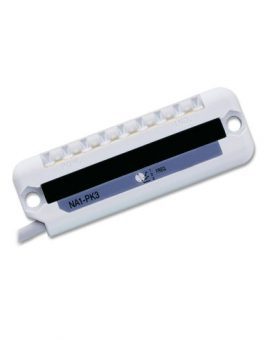

NA1-PK3 Photoelectric Sensor
Ultraslim body picking sensor
With an ultracompact size of 24mm × 70mm × 8mm (WxHxD), you can even install the NA1-PK3 series sensors in tiny parts boxes. The beam scanning system reduces wiring and installation time. The mutual interference prevention function guarantees correct operation even in multi-stage parts boxes.
[vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]

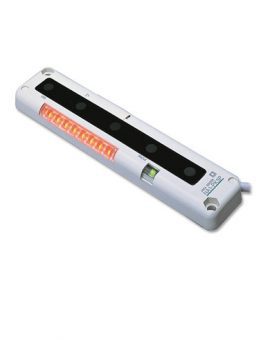

NA1-PK5 Photoelectric Sensor
Slim body picking sensor
The NA1-PK5 series is a new area sensor which prevents the wrong part from being picked. With its ultrathin design, you can really save space. The sensor incorporates a high visibility job indicator with 8 orange LEDs. The picking location can be easily confirmed, even in a brightly lit workplace. The sensing range of 1.2m is suitable for large parts boxes. A PNP output type is also available.
[vc_btn title="Download Here" style="flat" shape="square" color="warning" size="lg" i_icon_fontawesome="fa fa-caret-square-o-down" add_icon="true" link="url:#"]
