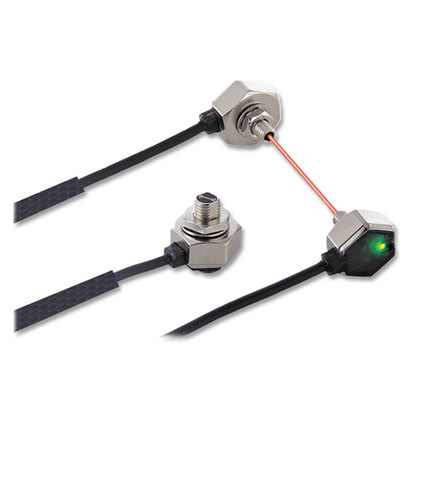

EX-30 Photoelectric Sensor

Threaded miniature photoelectric sensors

With an M4 thru-beam type and an M6 reflective type sensor, the user has a series of miniature photoelectric sensors at his disposal. In addition to being quick and easy to install, the EX-30 series sensors’ integrated signal amplifier, stable mechanical properties, and robust, zinc housing make it an attractive alternative to photoelectric sensors with fiber cables.

Characteristics:

  • Threaded design (M4 thru-beam type and M6 reflective type)
  • Response time only 0.5ms
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Red LED
  • Sensitivity can be adjusted (EX-32, EX-33)
  • 2-color LED indicator
  • IP67 degree of protection
  • Light ON/dark ON modes (EX-33)
Download Here
Share this

Threaded miniature photoelectric sensors

With an M4 thru-beam type and an M6 reflective type sensor, the user has a series of miniature photoelectric sensors at his disposal. In addition to being quick and easy to install, the EX-30 series sensors’ integrated signal amplifier, stable mechanical properties, and robust, zinc housing make it an attractive alternative to photoelectric sensors with fiber cables.

Characteristics:

  • Threaded design (M4 thru-beam type and M6 reflective type)
  • Response time only 0.5ms
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Red LED
  • Sensitivity can be adjusted (EX-32, EX-33)
  • 2-color LED indicator
  • IP67 degree of protection
  • Light ON/dark ON modes (EX-33)

Accessories:

  • Slit masks
  • Sensor mounting bracket

Specifications

NPN output EX-31A / EX-31B EX-32A / EX-32B EX33
PNP output EX-31APN /
EX-31BPN		 EX-32APN / EX-32BPN EX33PN
Sensor type Thru-beam Diffuse reflective Thru-beam
Rated sensing distance 500mm 50mm 800mm
Sensing range 0 – 500mm 0 – 50mm 0 – 800mm
Standard sensing object Metal, matt black
Ø >= 2mm		 White, non-glossy paper
10 x 10cm		 Metal, matt black
Ø >= 2mm
Detectable target Opaque material Opaque, semitransparent, transparent material Opaque material
Hysteresis — < 15% of measurement —
Response time Max. 0.5ms
Sensing output Max. 50mA
Emitting diode Red LED (modulated)
Rated current consumption Emitter: max. 10mA
Receiver: max. 10mA		 Max. 13mA Emitter: max. 10mA
Receiver: max. 10mA
Housing material Zinc, nickel plated
Degree of protection IP67
Physical size (ØxL, HxB) M4 x 7, 7 x 14mm
(wrench size)		 M6 x 7. 7 x 14mm
(wrench size)		 M4 x 7, 7 x 14mm
(wrench size)
Connection method Cable 2m
Supply voltage 12 – 24V DC (± 10%)
Ambient temperature -25 to +55°C
Weight (approx.) Transmitter: 20g
Receiver: 20g		 20g Transmitter: 20g
Receiver: 20g
A = light ON, B = dark ON
