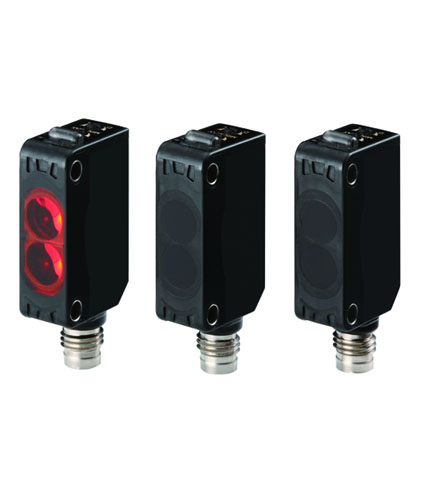

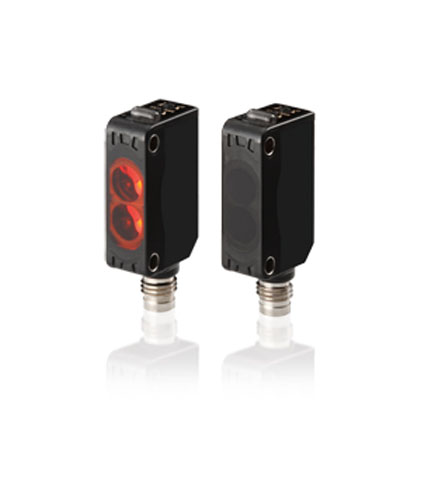

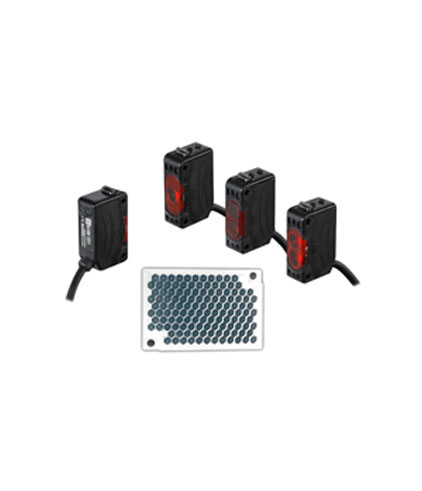

Compact and Long Distance Sensing Type Photoelectric Sensor
BGS Reflective Type BGS reflective type which reduces the influence of background objects by adopting background suppress function realizes more stable and upgraded sensing performance by minimizing error range regardless of materials and colors of sensing objects. Connector Type Cable outgoing connector types guarantee more convenient maintenance and wiring work than cable outgoing types and implement enhanced performance by realizing IP67 the excellent protection structure.
Main Features
Long distance sensing type
* Long sensing distance with high quality lens
* Long sensing distance
: Through-beam type 15m, Diffuse reflective type 1m, Polarized retroreflective type 3m(MS-2A)
* M.S.R.(Mirror Surface Rejection) function (Polarized retroreflective type)
* Compact size: W20×H32×L10.6mm
* Protection structure IP65/IP67(IEC standard)
* Light ON/Dark ON selectable by VR
* Sensitivity adjustment VR incorporated
* Built-in reverse power polarity, output short, overcurrent protection circuit
* Mutual interference prevention function(Except through-beam type)
* Improved noise resistance
BGS reflective type
* Adopts BGS method superior than convergent reflective to minimize error by background, or color, material of sensing object for stable sensing by adjusting the volume
* Visible light source to check the position of sensing spot and small spot minimizing effect of the ambient objects with narrow sensing width Transparent glass sensing type / Micro spot type
Transparent glass sensing type / Micro spot type
* Stable sensing for transparent object(LCD, PDP, glass etc) by BJG30-DDT
* Easy to check sensing location with visible micro spot(BJN Series)
* Detects tiny objects (min. sensing target Ø0.2mm copper wire)
Commonness
* Compact size: W20×H32×L10.6mm
* Protection structure IP65(IEC standard)
* Light ON/Dark ON selectable by VR(Except BJG30-DDT)
* Sensitivity adjustment VR incorporated(Except BJG3 DDT)
* Built-in reverse power polarity, output short, overcurrent protection circuit
* Mutual interference prevention function(Except BGS reflective type)
* Improved noise resistance and minimized effect of disturbance light
Applications
* Defect inspection in drug packaging process
