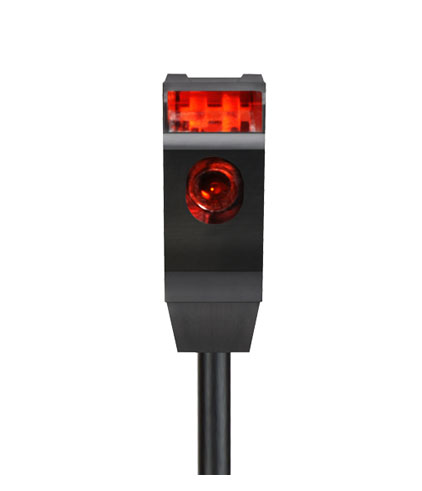

BTS Series

Ultra-Compact, Slim Type Photoelectric Sensors with Built-In Amplifiers
The ultra-compact, ultra-slim type photoelectric sensors BTS series are ideal for installation in limited spaces and compact applications. The sensors measure just 7.2 mm wide, come equipped with built-in amplifiers and are capable of detecting tiny objects including metallic wires and semiconductor chips. The BTS Series is also built with IP67 protection structure and stainless steel mounting brackets, providing durable and reliable sensing solutions in diverse environments.

100531125332

Share this

Features

  • Ultra-slim width of only 7.2 mm
    – W 7.2 x H 18.6 x L 9.5 mm (through-beam type)
    – W 7.2 x H 24.6 x L 10.8 mm (retroreflective type, convergent reflective type)
  • Detection methods and minimum target size
    – Through-beam type (BTS1M): Ø2 mm
    – Retroreflective type (BTS200): Ø2 mm (at distance 100 mm)
    – Convergent reflective type (BTS15/BTS30): Ø0.15 mm (at distance 10 mm)
    * Detecting distance may vary by environmental factors
  • Maximum detection distance: 1 m (through-beam type)

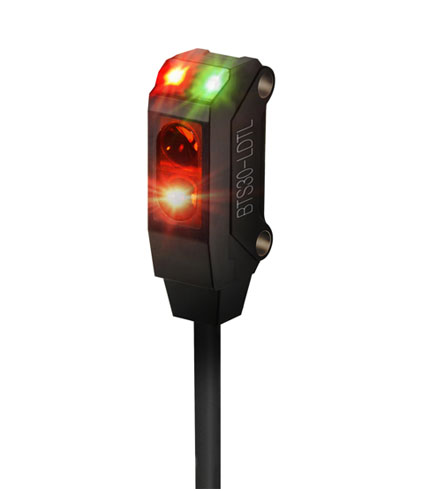

  • Stability indicator (green LED) and operation indicator (red LED)
  • Stainless steel 304 mounting brackets
  • IP67 protection structure (IEC standard)

bts-3 bts-4 bts-5 bts-6
