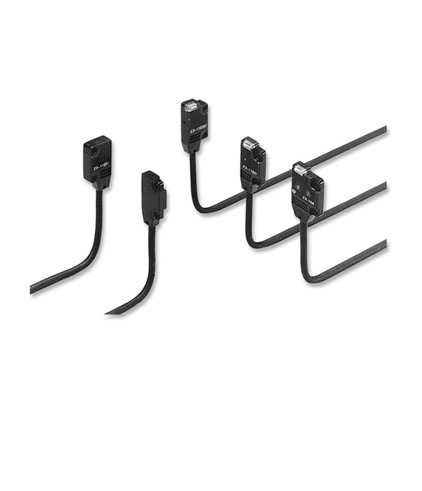

EX-10 Photoelectric Sensor

Ultraminiature photoelectric sensors

With dimensions of only 14.5 x 3.5 x 10mm, the EX-10 series sensors are among the smallest and narrowest sensors worldwide. Despite their ultraminiaturized design, the maximum range of the thru-beam version is 1000mm yielding an exceptionally high performance. The EX-10 series is available in two different basic designs, with a front sensing or side sensing light source, which additionally extends the mounting options in narrow spaces.

Characteristics:

  • Response time only 0.5ms
  • Front sensing or side sensing versions
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Fixed focus reflecting types (diffuse light type) available
  • 2 indicator LEDs
  • Sealed to IP67
Download Here
Share this

Ultraminiature photoelectric sensors

With dimensions of only 14.5 x 3.5 x 10mm, the EX-10 series sensors are among the smallest and narrowest sensors worldwide. Despite their ultraminiaturized design, the maximum range of the thru-beam version is 1000mm yielding an exceptionally high performance. The EX-10 series is available in two different basic designs, with a front sensing or side sensing light source, which additionally extends the mounting options in narrow spaces.

Characteristics:

  • Response time only 0.5ms
  • Front sensing or side sensing versions
  • New: up to 35% less power consumption
  • New: improved ambient light immunity
  • Fixed focus reflecting types (diffuse light type) available
  • 2 indicator LEDs
  • Sealed to IP67

Specifications

NPN output EX-11A/ EX-11B EX-13A/ EX-13B EX-19A/ EX-19B EX-14A/ EX-14B EX-11EA/ EX-11EB EX-13EA/ EX-13EB
PNP output EX-11APN/
EX-11BPN		 EX-13APN/
EX-13BPN		 EX-19APN/
EX-19BPN		 EX-14APN/
EX-14BPN		 EX-11EAPN/
EX-11EBPN		 EX-13EAPN/
EX-13EBPN
Front sensing type Side sensing type
Sensor type Thru-beam Diffuse Thru-beam
Rated sensing distance 150mm 500mm 1m 25mm 150mm 500mm
Sensing range — 2 – 25mm —
Standard detectable
object		 Metal, matt black Copper wire
min.Ø 0,1mm		 Metal, matt black
min. Ø 1mm min. Ø 2mm Tastweite
10mm		 min. Ø 1mm min. Ø 2mm
Detectable target Opaque Opaque, transparent Opaque
Hysteresis — < 15% of measurement —
Response time Max. 0.5ms
Output transistor max. 50mA
Wavelength of
emitting diode		  660nm, red LED
Rated current
consumption without
load		 Transmitter: max 10mA
Receiver: max. 10mA		 Max. 13mA Transmitter: max 10mA
Receiver: max. 10mA
Housing material Plastic
Protection IP67
Physical size (HxWxL) 14,5 x 3,5 x 10mm (front type)
14,5 x 4,5 x 10mm (side type)		 14,5 x 3,5 x 13mm 14,5 x 3,5 x 10mm (front type)
14,5 x 4,5 x 10mm (side type)
Connection method M8 connector cable 2 m
Operating voltage 12 – 24V DC (± 10%)
Usable ambient temp. -25°C to +55°C
Weight (approx.) 40g 20g 40g

A = light ON, B = dark ON
