Simpler and Easier to Use
CE Approved
CE : EMC Directive
Two levels of setting mode for easy operation of essential functions
The “RUN mode” is for threshold value setting, zero point adjustment and key lock setting / release setting, and the “detailed setting mode” allows for basic settings for sensor operation. The two-level setting mode configuration enables easy and immediate use of the product.
Main menu for detailed setting mode
| Operation setting mode | NO / NC setting mode |
|---|---|
 |
 |
| Select from EASY mode, hysteresis mode or window comparator mode. | Set the comparative output operation to NO or NC. |
| Response time setting mode | Display color setting mode |
|---|---|
 |
 |
| Select the response time from 2.5 ms, 25 ms or 250 ms. | Select the comparative output ON / OFF display color and the normal display color from red or white. |
Black body for enhanced visibility of LCD display
The unit body is completely black to make the LCD display easier to see.
Firm and crisp clicking feel
The buttons offer firm and crisp clicking feel for smooth and reliable setting operations.

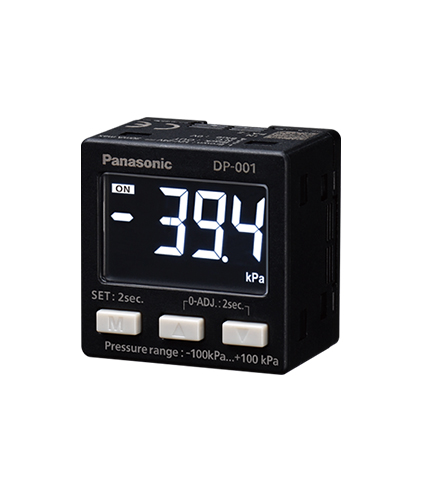

Simple and highly visible display
The LCD offers a wide viewing angle so the display is easy to see even from an oblique angle. The alphanumeric display (12-segment display), key lock mark and OVER mark further enhance the recognition of display.
Selection of display color from red or white
The display color can be selected from red or white in accordance with the output operation. Since the detailed setting mode display is pink (unchangeable), the pressure sensor status can be easily recognized by color.
| Display color setting |
RUN mode | Detailed setting mode |
|
|---|---|---|---|
| Comparative output ON | Comparative output OFF | ||
| Red for ON, white for OFF | Red | White | Pink |
| White for ON, red for OFF | White | Red | |
| Red in normal status | Red | ||
| White in normal status | White | ||
Extra-short depth and light weight
The unit body measures only 24.9 mm 0.980 in in depth to allow installation in a narrow space. The main unit weighs only about 25 g. The lightweight unit means minimal load when mounted on a moving part such as a robot arm.
Two types to choose from according to applications
The low pressure type can be used with positive or negative pressure, while the high pressure type is suitable for positive pressure of up to 1 MPa.
Equipped with three output modes for use in a wide range of applications
(1)EASY mode
This mode is used for comparative output ON / OFF control.
H: 4 digits (fixed) (10 digits or more when using psi unit)
(2)Hysteresis mode
This mode is used for setting comparative output hysteresis to the desired level and for carrying out ON / OFF control.
H: 2 digits or more (5 digits or more when using psi unit)
(3)Window comparator mode
This mode is used for setting comparative output ON and OFF at pressures within the setting range.
H: 4 digits or more (10 digits or more when using psi unit)
Tight installation is possible
An exclusive mounting bracket that is suitable for 1 to 3 mm 0.039 to 0.118 in panel thickness is available.
Supports tight installation
Space savings can also be achieved even when an L-shaped mounting bracket is used.
Cable can be connected with one-touch
Connector attached cable (2 m 6.562 ft), as an accessory, can be connected easily with one-touch connection.
* Options: 1 m 3.281 ft / 3 m 9.843 ft / 5 m 16.404 ft types are also available.
Types without connector attached cable are also available [DP-00□-J]
Commercially-available connectors can be used for cable connections. Cables in required length can be used, so this contributes to reduction in waste of unwanted cables.
![Types without connector attached cable are also available [DP-00□-J]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/DP-0-pic18.jpg)
* Refer to Option for recommended commercially-available connectors.
| Type | Low pressure | High pressure | |
|---|---|---|---|
| Model No. |
NPN output | DP-001 | DP-002 |
| PNP output | DP-001-P | DP-002-P | |
| Type of pressure | Gauge pressure | ||
| Rated pressure range | -100.0 to +100.0 kPa | 0.000 to +1.000 MPa | |
| Set pressure range | -101.0 to +101.0 kPa -1.030 to +1.030 kgf/cm2 -1.010 to + 1.010 bar -14.65 to +14.65 psi -756 to +756 mmHg |
-0.010 to +1.010 MPa -0.1 to +10.30 kgf/cm2 -0.1 to + 10.10 bar -0.1 to +146.5 psi |
|
| Pressure withstandability | 500 kPa | 1.5 MPa | |
| Applicable fluid | Air, non-corrosive gas | ||
| Selectable unit | Low pressure type: kPa, kgf/cm2, bar, psi, mmHg High pressure type: MPa, kgf/cm2, bar, psi |
||
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less | ||
| Power consumption | 30 mA or less | ||
| Comparative output | <NPN output type> NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between comparative output and 0 V) • Residual voltage: 2 V or less (at 50 mA sink current) <PNP output type> |
||
| Output operation | Selectable either NO or NC by key operation | ||
| Hysteresis | Minimum 2 digits (variable) | ||
| Repeatability | ±0.2 % F.S. (within ±4 digits) | ±0.4 % F.S. (within ±4 digits) | |
| Response time | 2.5 ms, 25 ms, 250 ms, selectable by key operation | ||
| Short-circuit protection | Incorporated | ||
| Display | 3 + 1/2 digits, 3-color (white / red / pink) LCD display (Display update period: 250 ms) | ||
| Displayable pressure range |
-101.0 to +101.0 kPa -1.030 to +1.030 kgf/cm2 -1.010 to + 1.010 bar -14.65 to +14.65 psi -756 to +756 mmHg |
-0.010 to +1.010 MPa -0.1 to +10.30 kgf/cm2 -0.1 to + 10.10 bar -0.1 to +146.5 psi |
|
| Environmental resistance |
Protection | IP40 (IEC) | |
| Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed), Storage: -10 to +60 ℃ +14 to +140 ℉ | ||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||
| Voltage withstandability | 500 V AC for one min. between all supply terminals connected together and enclosure | ||
| Insulation resistance | 50 MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure | ||
| Vibration resistance | 10 to 150 Hz frequency, amplitude 0.75 mm 0.030 in or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each | ||
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for three times each | ||
| Pollution degree | 2 | ||
| Overvoltage category | I | ||
| Usable altitude | 2,000 m 6,562 ft or less | ||
| Temperature characteristics (+20℃ standard) |
+10 to +40℃ +50 to +104 ℉: Within ±1 % F.S. 0 to +50℃ 32 to +122℉: Within ±2.5 % F.S. |
+10 to +40℃ +50 to +104℉: Within ±2 % F.S. 0 to +50℃ 32 to +122℉: Within ±5 % F.S. |
|
| Grounding method | Floating | ||
| Pressure port | M5 female thread | ||
| Material | Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Pressure port: Brass (nickel plated), Mounting threaded part: Brass, O-ring: Nitrile rubber (NBR), Key section: Polycarbonate |
||
| Weight | 25 g approx. | ||
| Accessory | CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1 pc. | ||
Note:
Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
