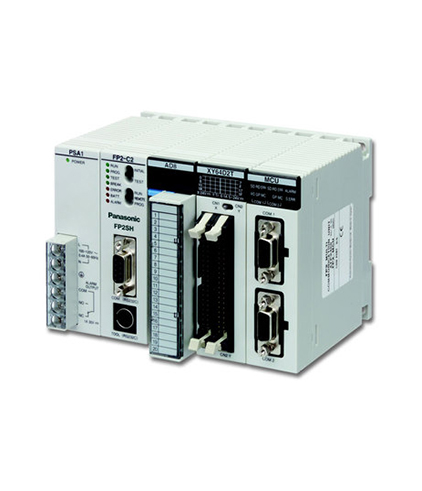

Scanning time of 1 ms for 20k steps. A high-performance model for high-speed operation.
UL/C-UL , CE Approved
With an operating speed at the top of its class, super high-speed processing is made possible.
The result is a dramatically decreased tact time and high-speed device.
Both the large programming capacities of 32k , 60k and 120k are available depending on the model.
The small PC card is available for programming backup or data memory expansion.
This allows data processing of great amounts of data.
These functions, options with the FP2, are built right into the FP2SH.
* The I/O unit and intelligent unit are the same for the FP2 series.
| Item | Description | ||
|---|---|---|---|
| FP2SH | |||
| Power supply / I/O Specifications | Power supply | 100 V to 120 V AC / 200 V to 240 V AC/100 V to 240 V AC, 24 V DC (varies with different models) | |
| Input | 12 V to 24 V DC, 24 V DC ±common | ||
| Output | Relay 2 A to 5 A / Transistor 0.1 A to 0.5 A (varies with different models) | ||
| Performance Specifications | Number of I/O points | Up to 768 points | |
| Expansion | Up to 1 backplane Max. number of I/O points: 1,600 Remote I/O: 8192 points | ||
| Operation speed | 0.03µs/step (Basic instuction) | ||
| Built-in memory | RAM (ROM/Small PC card is optional) | ||
| Memory capacity | Approx. 32k steps/Approx. 60k steps/Approx. 120k steps (varies with defferent models) | ||
| Operation memory | Internal relay | 14192 points | |
| Timer/Counter(T/C) | 3072 points in total | ||
| Data register | 10240 words | ||
| File register | 32765 words × 3 banks | ||
| Special Functions | Analog I/O | Available by adding analog input and analog output units. | |
| High speed counter | Available by adding high-speed counter unit. (Max. 200 kHz) | ||
| Pulse output | Positioning unit 2-axis Positioning unit 4-axis | ||
| Interrupt input | Available by adding high-speed counter unit or pulse I/O unit. | ||
| Special Network Functions | Serial communication | RS232C, RS485, RS422, Modem | |
| Remote I/O | S-LINK, S-LINK V or MEWNET-F | ||
| PLC link | MEWNET-W2(Wire), MEWNET-W0, MEWNET-VE or FL-NET | ||
| Other Built-in Functions | Program block-edit during RUN | Available | |
| Constant scan | Available | ||
| Clock/Calendar function | Built-in type | ||
