Thin body controller can do cascade connection and communication with upper devices
CE Approved
CE : EMC Directive
DPS-400 series accommodates to the requirements for pressure sensors at production site such as miniaturization of sensors for downsizing equipment, convenient shape to fit into machines, and reduction of man-hours when it comes to replacement.

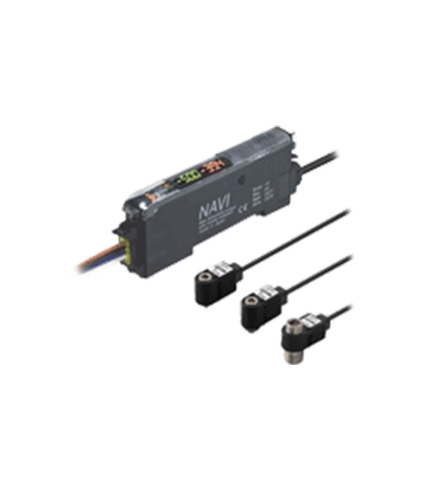

■Sensor head DPH-100 series
Direct installation using a hexagonal wrench
・Direct mounting from above
・Installation in narrow spaces
・Extended freedom of layout
・Single axis type free turning structure
■Controller DPS-400 series
Thin body (t10 mm t0.394 in) and multi-unit connection on a DIN rail helps to downsize equipment for better construction.
The controller is equipped with a 4-digit dual digital display. Because the threshold value can be adjusted while checking the “current value (current pressure value)”, direct setting and checking of the “threshold value” is made smoothly without having to switch screen modes.
The quick-connection cables enable reductions in wiring. The connections and man-hours for the relay terminal block setup can be reduced and valuable space is saved. Also, DPS-400 series can be connected side-by-side with fiber sensors FX-300 series or laser sensors LS-400 series.
Connection to CC-Link open network is possible through the communication unit for CC-Link SC-GU2-C. Monitoring or setting changes can be carried out via a PLC, PC, etc.
Ultra high-speed response time contributes to even greater productivity.
The sensor is equipped with two independent comparative outputs in which separate sensing modes can be selected.
(1) EASY mode
This mode is used for comparative output ON / OFF control.
(2) Hysteresis mode
This mode is used for setting comparative output hysteresis to the desired level and for carrying out ON / OFF control.
(3) Window comparator mode
This mode is used for setting comparative output ON or OFF at pressures within the setting range.
(4) Forced output ON mode
The comparative outputs are forcibly maintained at ON irrespective of the set values.
(5) Forced output OFF mode
The comparative outputs are forcibly maintained at OFF irrespective of the set values.
Using a hexagonal wrench, obstructions can be avoided and installation can be done easily by turning the bolt from above.
![Hexagonal wrench installation saves man-hours and spaces [Industry first*]](https://www.wentech.com.my/cms/cms/wp-content/uploads/2016/05/DPS-400-pic10.jpg)
During maintenance, the sensor head needed to be removed can be easily removed from directly above.
Because the dead zone caused by the nut is eliminated, the narrowed-down thickness after installation contributes to space saving.
| Type | Compound pressure | Positive pressure | Vacuum pressure | ||||||
|---|---|---|---|---|---|---|---|---|---|
| ±100 kPa type | 1 MPa type | -101 kPa type | |||||||
| Model No.(Note 3) | DPH-101(-R) | DPH-101-M3(-R) | DPH-101-M5(-R) | DPH-102 | DPH-102-M5(-R) | DPH-103(-R) | DPH-103-M3(-R) | DPH-103-M5(-R) | |
| Type of pressure | Gauge pressure | ||||||||
| Rated pressure range | -100.0 to +100.0 kPa | 0 to +1.000 MPa | 0 to -101.0 kPa | ||||||
| Pressure withstandability | 500 kPa | 1.5 MPa | 500 kPa | ||||||
| Applicable fluid | Air, non-corrosive gas | ||||||||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | ||||||||
| Current consumption | 15 mA or less | ||||||||
| Analog voltage output | (Note 4)
Output voltage: 1 to 5 V (over rated pressure range) |
||||||||
| Protection | IP40 (IEC) | ||||||||
| Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed), Storage: -10 to +60 ℃ +14 to +140 ℉ | ||||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||||||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||||||||
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | ||||||||
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm 0.118 in or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each | ||||||||
| Shock resistance | 1,000 m/s2 acceleration (100 G approx.) in X, Y and Z directions for three times each | ||||||||
| Temperature characteristics | Over ambient temperature range 0 to +50 ℃ +32 to +122 ℉: within ±2 % F.S. of detected pressure at +25 ℃ +77 ℉ | ||||||||
| Pressure port | DPH-10□(-R): R1/8 male thread + M5 female thread, DPH-10□-M3(-R): M3 male thread (for installing gasket) DPH-10□-M5(-R): M5 male thread (for installing gasket) |
||||||||
| Material | Front case: PBT, Rear case: PBT (glass fiber reinforced), Pressure port: Stainless steel (SUS303), O-ring: NBR Pressure element: Silicon diaphragm, PPS |
||||||||
| Connecting method | Connector | ||||||||
| Cable | 0.2 mm2 4-core oil resistant cabtyre cable (Models with “-R” affixed to the Model No. have flexible, oil-resistant cabtyre cable) | ||||||||
| Cable extension | Extension up to total 10 m 32.808 ft is possible with 0.2 mm2, or more, cable. | ||||||||
| Weight | Net weight | DPH-10□(-R): Head 10 g approx. / Cable 40 g approx., DPH-10□-M3/M5(-R): Head 6 g approx. / Cable 40 g approx. | |||||||
| Gross weight | DPH-10□(-R): 80 g approx., DPH-10□-M3/M5(-R): 70 g approx. | ||||||||
| Accessory | Connector (e-CON): 1 pc. | ||||||||
Note:
| Type | NPN output type | PNP output type | |
|---|---|---|---|
| Model No. | DPC-101 | DPC-101-P | |
| Applicable sensor head | DPH-101□, DPH-102□, DPH-103□ | ||
| Rated pressure range (Note 2) |
Compound pressure: -100.0 to +100.0 kPa, Positive pressure: 0 to +1.000 MPa, Vacuum pressure: 0 to -101.0 kPa |
||
| Set pressure range (Note 2) |
Compound pressure: -199.9 to +199.9 kPa (-1.999 to +1.999 kgf/cm2, -19.98 to +19.98 psi, -1.999 to +1.999 bar, -1510 to +1537 mmHg, -59.4 to +60.5 inHg) Positive pressure: -1.050 to +1.050 MPa (-10.71 to +10.71 kgf/cm2, -152.2 to +152.2 psi, -10.50 to +10.50 bar) Vacuum pressure: +101.3 to -101.3 kPa (+1.033 to -1.033 kgf/cm2, +14.70 to -14.70 psi, +1.013 to -1.013 bar, +760 to -760 mmHg, +29.9 to -29.9 inHg) |
||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | ||
| Power consumption | Normal operation: 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage) ECO mode (STD): 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode (FULL): 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage) Excluding the current consumption of sensor head and analog output current |
||
| Sensor head supply voltage | Same as supply voltage | ||
| Comparative outputs (Comparative output 1, 2) |
NPN open-collector transistor (2 outputs) ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between comparative output and 0 V) ・Residual voltage: 2 V or less (at 100 mA sink current) |
PNP open-collector transistor (2 outputs) ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between comparative output and +V) ・Residual voltage: 2 V or less (at 100 mA source current) |
|
| Output operation | NO / NC, selectable by key operation | ||
| Output modes | EASY mode / Hysteresis mode / Window comparator mode | ||
| Hysteresis | Minimum 1 digit (variable) (however, 2 digits when using psi unit) | ||
| Repeatability | With vacuum / positive pressure type connected: within ±0.2 % F.S. (±2 digits) With compound pressure type connected: within ±0.2 % F.S. (±4 digits) |
||
| Response time | 0.5 ms, 1 ms, 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation | ||
| Short-circuit protection | Incorporated | ||
| Analog output | <Analog voltage output> ・Output current: 1 to 5 V DC ・Zero point: within 1 V ± 0.5 % F.S. (vacuum / positive pressure type) within 3 V ± 0.5 % F.S. (compound pressure type) ・Span: within 4 V ± 0.5 % F.S. ・Linearity: within ±0.1 % F.S. ・Output impedance: 1 kΩ approx. <Analog current output> |
||
| Inputs | Sensor head input | Input voltage range: 1 to 5 V DC (over rated pressure range) | |
| External input (Auto-reference function/Remote zero-adjustment function) |
ON voltage: +0.4 V DC or less OFF voltage: +5 to +30 V DC, or open Input impedance: 10 kΩ approx. Input time: 1 ms or more |
ON voltage: +5 V to +V DC OFF voltage: +0.6 V DC or less, or open Input impedance: 10 kΩ approx. Input time: 1 ms or more |
|
| Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate: 250 ms, 500 ms, 1,000 ms, selectable by key operation) | ||
| Displayable pressure range | Vacuum pressure: +5.1 to -101.3 kPa, Positive pressure: -0.050 to +1.020 MPa, Compound pressure: -101.3 to +105.0 kPa |
||
| Operation indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator: Lights up when each comparative output is ON) | ||
| Protection | IP40 (IEC) | ||
| Ambient temperature | -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -10 to +60 ℃+14 to +140 ℉ | ||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | ||
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm 0.118 in or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel mounting bracket is mounted : 10 to 150 Hz frequency, amplitude 0.75 mm 0.030 in or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) | ||
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions for three times each | ||
| Temperature characteristics | Within ±0.5 % F.S. (ambient temperature range based on +20 ℃ +68 ℉) | ||
| Material | Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Mounting threaded part: Brass (nickel plated), Switch part: Silicone rubber | ||
| Connecting method | Connector | ||
| Cable length | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. | ||
| Weight | Net weight: 25 g approx. (excluding connector attached cable), Gross weight: 140 g approx. | ||
| Accessories | CN-66A-C2 (Connector attached cable 2 m 6.562 ft), Pressure unit label: 1 set | ||
