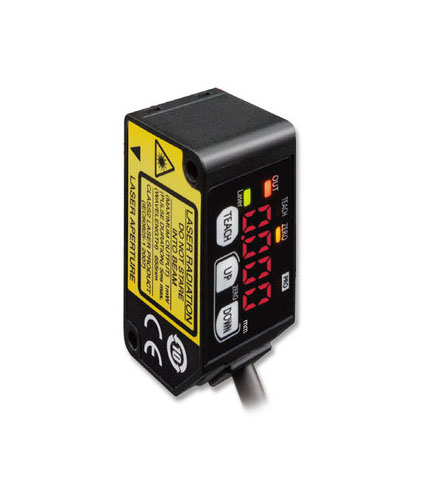

As compact as a photoelectric sensor, the CMOS laser sensor allows to display actual measured distance as accurately as a displacement sensor.
As compact as a photoelectric sensor, the CMOS laser sensor allows to display actual measured distance as accurately as a displacement sensor.
| NPN | HG-C1030 | HG-C1050 | HG-C1100 | HG-C1200 | HG-C1400 |
|---|---|---|---|---|---|
| PNP | HG-C1030-P | HG-C1050-P | HG-C1100-P | HG-C1200-P | HG-C1400-P |
| Measurement center | 30mm | 50mm | 100mm | 200mm | 400mm |
| Measurement range | +/-5mm | +/-15mm | +/-35mm | +/-80mm | +/-200mm |
| Repeatability | 10μm | 30μm | 70μm | 200μm | 300μm (200-400mm) 800μm (400-600mm) |
| Linearity | +/-0.1% F.S. | ||||
| Temperature drift | +/-0.03% F.S./°C | ||||
| Beam source | Red semiconductor laser (655nm), Class 2 (JIS/IEC/GB)/Class II (FDA) | ||||
| Beam spot | ~ Ø 50μm | ~ Ø 70μm | ~ Ø 120μm | ~ Ø 300μm | ~ Ø 500μm |
| Supply voltage | 12 to 24VDC +/-10% | ||||
| Control output | 1 output (Light-ON/Dark-ON switching), Load current: 50mA or less | ||||
| Analog output | Voltage output: 0 to 5V (at alarm: +5.2V) / Output impedance: 100Ω Current output: 4 to 20mA (at alarm: 0mA) / Output impedance: max. 300Ω Switchable via settings |
||||
| Response time | High speed: 1.5ms / Standard: 5ms / High precision: 10ms (Switching) | ||||
| External input | 1 input (Zero adjustment, Teaching, Laser ON/OFF, Trigger function selection) | ||||
| Protection degree | IP67 | ||||
| Cable | 5-core, 2m cable attached | ||||
| Weight | 35g (exclude cable), Approx. 85g (incl. cable) | ||||
Option: Mounting bracket, enable fine adjustment in two directions (±5°, ±7,5°), please order separately: item number MS-HG-01
 |
 |
 |
| The deflection measurement of the hoop material | Thickness measurement of a plate | Height control of the dispenser head |
 |
 |
 |
| Height control of a component | Height control of a robot | Installation on a food packaging line (IP67) |
