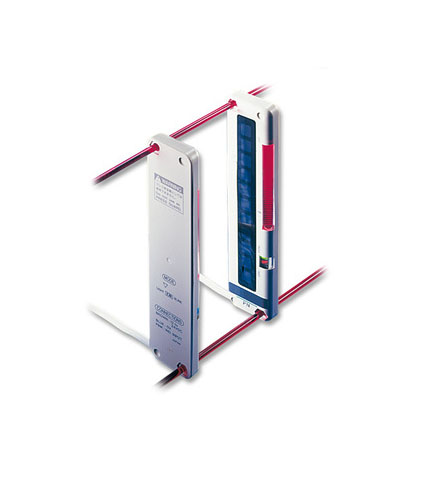

The NA1-11 sensor detects objects in a field of up to 10 x 100cm. This makes it particularly well suited to applications for which the position of the objects to be detected varies. This sensor is based on innovative cross-beam technology in which the infrared beam of each individual emitter element is sent to all receiver elements. This allows even small and narrow objects, such as letters, to be securely detected. At just 10mm wide, these light barriers help to save installation space.
The NA1-11 sensor detects objects in a field of up to 10 x 100cm. This makes it particularly well suited to applications for which the position of the objects to be detected varies. This sensor is based on innovative cross-beam technology in which the infrared beam of each individual emitter element is sent to all receiver elements. This allows even small and narrow objects, such as letters, to be securely detected. At just 10mm wide, these light barriers help to save installation space.
Characteristics:
Accessories:
| NPN output | NA1-11 |
|---|---|
| PNP output | NA1-11-PN |
| Sensor type | Area Sensor |
| Sensing height | 100mm |
| Sensing width | 17 – 100cm |
| Grid spacing | 10mm |
| Standard detectable object | Ø >/= 13.5mm |
| Detectable target | Opaque material |
| Response time | Max. 5ms (dark ON) Max. 10ms (light ON) |
| Output transistor | Max. 100mA |
| Emitting diode | Infrared LED |
| Rated current consumption without load | Emitter: max. 80mA Receiver: max. 100mA |
| Housing material | Plastic |
| Protection | IP62 |
| Physical size (HxWxL) | 140 x 10 x 30mm |
| Connection method | Cable 2m |
| Operating voltage | 12 – 24V DC (± 10%) |
| Usable ambient temperature | 0°C to +55°C |
| Weight (approx.) | Emitter: 80g Receiver: 85g |
 |
 |
 |
| Object detection | Component control | Detecting workpieces on conveyor line |
