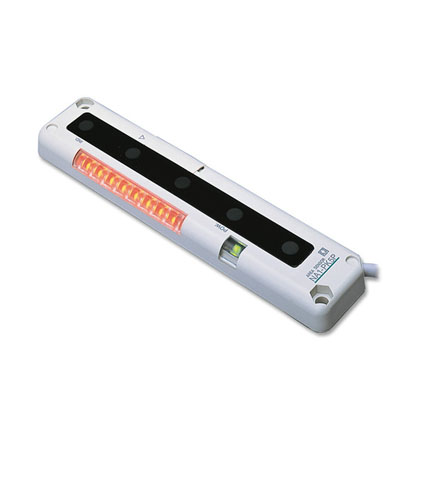

The NA1-PK5 series is a new area sensor which prevents the wrong part from being picked. With its ultrathin design, you can really save space. The sensor incorporates a high visibility job indicator with 8 orange LEDs. The picking location can be easily confirmed, even in a brightly lit workplace. The sensing range of 1.2m is suitable for large parts boxes. A PNP output type is also available.
The NA1-PK5 series is a new area sensor which prevents the wrong part from being picked. With its ultrathin design, you can really save space. The sensor incorporates a high visibility job indicator with 8 orange LEDs. The picking location can be easily confirmed, even in a brightly lit workplace. The sensing range of 1.2m is suitable for large parts boxes. A PNP output type is also available.
Characteristics:
Options:
| NPN output | PNP output | |||
|---|---|---|---|---|
| High-luminous job indicator type | Long sensing range type | High-luminous job indicator type | Long sensing range type | |
| NA1-PK5 | NA1-5 | NA1-PK5-PN | NA1-5-PN | |
| Sensor type | Picking sensor | |||
| Sensing height | 100mm | |||
| Sensing range | 0.1 to 1.2m | 0.2 to 3m | 0.1 to 1.2m | 0.2 to 3m |
| Beam pitch | 25mm | |||
| Number of beam channels | 5 beam channels | |||
| Sensing object | Ø35mm or more, opaque object | |||
| Supply voltage | 12 to 24V DC ±10% | |||
| Power consumption | Emitter: 0.5W or less, Receiver 0.8W or less | Emitter: 0.5W or less, Receiver 0.9W or less | ||
| Output | NPN open-collector transistor, max.100mA | PNP open-collector transistor, max.100mA | ||
| Response time | 10ms or less | |||
| Pollution degree | 3 (industrial environment) | |||
| Protection | IP62 | |||
| Emitting element | Infrared LED | |||
| Physical size (WxHxD) | 30mm x 140mm x 10mm | |||
| Material | Enclosure: heat-resistant ABS, Lens cover: acrylic, Indicator cover: acrylic | |||
| Cable | 0.3mm² 4-core (emitter: 3-core) cab tire cable, 2m long | |||
| Weight (approx.) | Emitter: 80g Receiver: 85g | Emitter: 70g Receiver: 80g | Emitter: 80g Receiver: 85g | Emitter: 70g Receiver: 80g |
 |
 |
 |
| Prevents picking wrong parts | Access control on assembly line | Detecting parts having wide positioning area |
