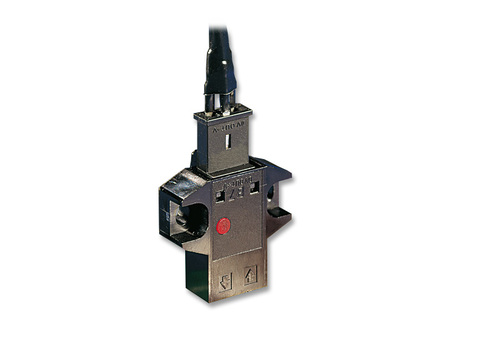

The PM2 series is suitable for a large number of applications due to its compact and robust design. The application range is extended using the “U” shaped version. Due to the fixed focusing of the light beam, PM2 sensors enable precise object detection in a defined sensing range. The PM2 series measures independently of the background, detects dark or slightly reflective objects and extremely thin objects (> 0.05mm).
Characteristics:
The PM2 series is suitable for a large number of applications due to its compact and robust design. The application range is extended using the “U” shaped version. Due to the fixed focusing of the light beam, PM2 sensors enable precise object detection in a defined sensing range. The PM2 series measures independently of the background, detects dark or slightly reflective objects and extremely thin objects (> 0.05mm).
Characteristics:
| Connector type light ON | PM2LH10 | PM2LF10 | PM2LL10 |
|---|---|---|---|
| Connector type dark ON | PM2LH10B | PM2LF10B | PM2LL10B |
| Cable type light ON | PM2LH10C1 | PM2LF10C1 | PM2LL10C1 |
| Cable type dark ON | PM2LH10BC1 | PM2LF10BC1 | PM2LL10BC1 |
| Top type | Front type | L type | |
| Type | Convergent reflective type | ||
| Convergent point | 5mm | ||
| Sensing range | 2.5 – 8mm | ||
| Standard object | Nonglossy paper 15mm x 15mm | ||
| Hysteresis | 20% or less of operation distance with white, nonglossy paper 15x15mm | ||
| Response time | 0.8ms | ||
| Output | NPN, max 100mA | ||
| Emitting element | Infrared LED (modulated) | ||
| Current consumption | Average: 25mA or less, Peak: 80mA or less | ||
| Material | Enclosure: Polycarbonate | ||
| Protection | – – | ||
| Physical size (HxWxL) | 25.4 x 6.4 x 22.2mm | 15.5 x 14.3 x 27.2mm | 26 x 17.3 x 22.2mm |
| Connection method | Connector or cable 1m long | ||
| Operating voltage | 5 – 24V DC (+/- 10%) | ||
| Usable ambient temperature | -10°C to +55°C | ||
| Weight | 4.5g | 4g | |
 |
 |
| Detect capacitors in tray | Detect PCB |
