Panasonic’s new concept of connecting 6 sets of sensor heads to 1 controller in series offers you maximum flexibility to solve your safety application. Just configure exactly the number of sensor heads and controllers required to protect the area in question, e.g. small openings or irregularly shaped spaces impractical for safety light curtains.
Panasonic’s new concept of connecting 6 sets of sensor heads to 1 controller in series offers you maximum flexibility to solve your safety application. Just configure exactly the number of sensor heads and controllers required to protect the area in question, e.g. small openings or irregularly shaped spaces impractical for safety light curtains.

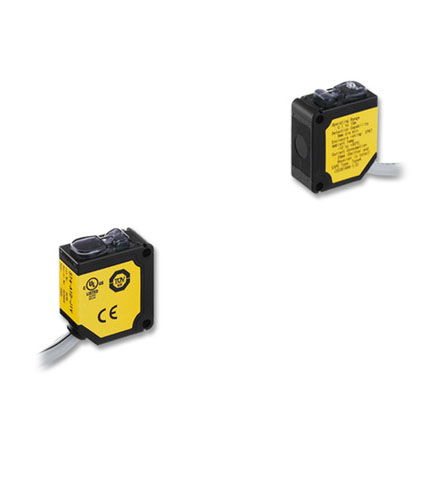

A beam interruption indicator is incorporated in both the emitter and receiver, which not only eases confirming operation but also facilitates aligning the beam axis.
The high-functional controller ST4-C12EX immediately diagnoses misaligned or abnormal sensor heads. Its digital display allows you to identify errors at a glance, and it supports both PNP and NPN polarities, easing stock management.
Characteristics:
Options:
| ST4-A1-J02 | ST4-A1-J02V | ST4-A1-J1 | ST4-A1-J1V | |
|---|---|---|---|---|
| Type | Cable length 0.2m | Cable length 0.2m With emission amount adjuster |
Cable length 1m | Cable length 1m With emission amount adjuster |
| Sensing range | 0.1 to 15m | |||
| Sensing object | ø9mm | |||
| Supply voltage | Supplied from controller | |||
| Current consumption | Emitter: 11mA or less, Receiver: 9mA or less |
|||
| Protection | IP67 | |||
| Usable ambient temperature | −10 to +55 °C (No dew condensation or icing allowed), Storage: −25 to +70°C | |||
| Weight | 45g | 100g | ||
| Emitting element | Infrared LED (Peak emission wavelength: 870nm) | |||
| Material | Enclosure: PBT (Polybutylene terephthalate), Lens: Acrylic, Indicator cover: Acrylic | |||
| Cable | Shielded cable with connector, 0.2m long | Shielded cable with connector, 1m long | ||
| Safety category | EN 13849-1 (Category 4) | |||
| Sensor Type | Controller | High-functional controller |
|---|---|---|
| ST4-C11 | ST4-C12EX | |
| Safety category | ISO 13849-1 (Category 4) | |
| Supply voltage | 24V DC +10/ −15 % Ripple P-P 10% or less | |
| Current consumption | 100mA or less (excluding sensor heads) | 120mA or less (excluding sensor heads) |
| Output transistors | OSSD1 and OSSD2 (PNP or NPN, switchable), max. 200mA | |
| Response time | ON -> OFF: 25ms or less OFF -> ON: 90ms or less (auto reset) / 140ms or less (manual reset) |
|
| Protection | Enclosure: IP40 (IEC), Terminal: IP20 (IEC) | |
| Ambient temperature | −10 to +55 °C (No dew condensation or icing allowed), Storage: −25 to +70°C |
|
| Material | Enclosure: ABS | |
| Weight | 180g | 240g |
 |
 |
 |
| Protection for long sensing ranges | Protection for small openings | Protection against non-authorized entry |
